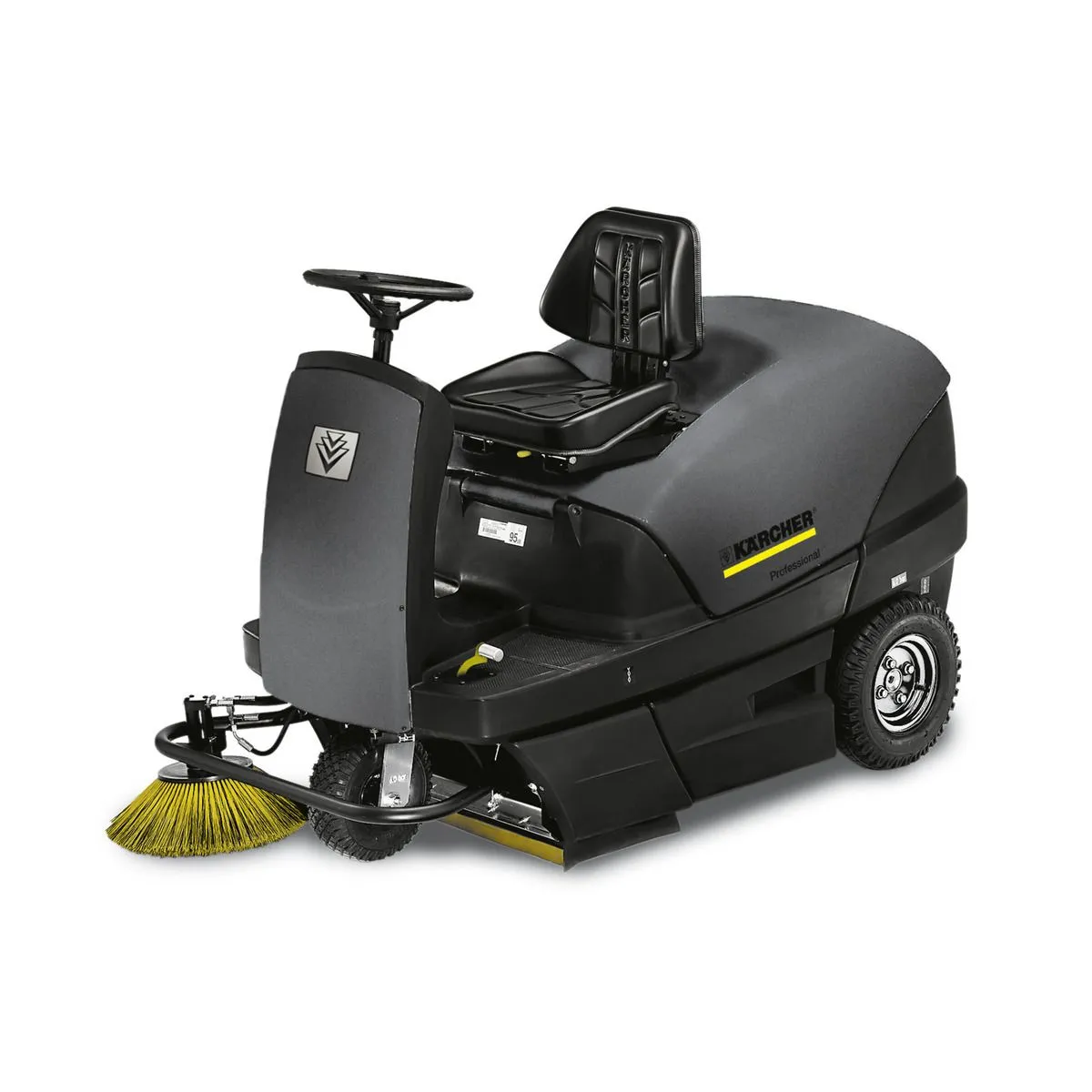

Name: VACUUM SWEEPER KM 100/100 R D
SKU: 987969

The KM 100/100 R D ride-on sweeper with 4.1 kW Yanmar motor with pneumatics offers a pedal for forward and reverse travel, as well as an automatic vacuum parking brake. The machine has a turning radius of just 3350 mm and uses the overthrow principle. The floating roller brush adjusts automatically to uneven surfaces. The roller brush can be replaced without tools thanks to a clever locking system. The built-in coarse dirt flap is conveniently operated via a foot pedal and enables easy intake of coarse dirt. Side brush and roller brush are hydraulically driven and activated via the EASY Operation System. A second optional side brush (left) is available. Both dirt receptables can be pulled out from the side. The motor switches off automatically when the seat is vacated.

Features and benefits

Impact protection

Protects the sweeper and obstacles within the area being cleaned.

Large filter area with automatic filter cleaning system

The filter is automatically cleaned when the machine is switched off Ã¢ã¬ã for continuous low-dust sweeping for long periods of uninterrupted use. Filter cleaning can also take place manually. Filter replacement without tools.

Easy to maintain

Filter and roller brush easy to remove without tools for flexible maintenance.

EASY Operation operating concept

Clear and logical arrangement of all controls in the handle and field of view for ease of use.
Standard symbols for all Kãrcher sweepers.

Specifications

Technical data

Drive	4-stroke diesel engine / Yanmar
Drive Ã¢ã¬ã power (kW)	4.4
Drive type	Diesel
Max. area performance (mÃã²/h)	8000
Working width (mm)	700
Working width with one side brush (mm)	1000
Working width with 2 side brushes (mm)	1300
Waste container (l)	100
Climbing ability (%)	18
Working speed (km/h)	8
Filter area (mÃã²)	6
Weight (kg)	340
Dimensions (L ã W ã H) (mm)	2006 x 1005 x 1343
